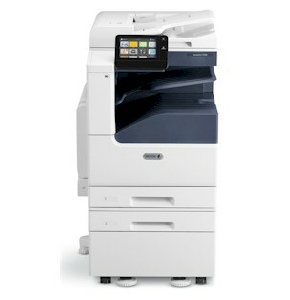

Xerox VersaLink C7025 repairs and servicing

       "Eddie can fix IT!

Xerox VersaLink C7025 Models:-

• Xerox VersaLink C7025DN
• Xerox VersaLink C7120DNW
• Xerox VersaLink C7025DNT
• Xerox VersaLink C7025S
• Xerox VersaLink C7025DX
• Xerox VersaLink C7025DXT
• Xerox VersaLink C7025DXTP

• Xerox VersaLink C7025 Supplies and Spare Parts

Xerox VersaLink C7025 local mobile on site repairs and servicing

Mobile on-site Xerox VersaLink C7025 printer repairs and servicing across West Sussex, East Sussex, Surrey and Kent.

Xerox VersaLink C7025 Specifications:

• Introduction Date: Introduction Date  06/2017
• Toner Yield (Hi-Capacity), Black: Toner Yield (Hi-Capacity), Black  Estimated 16,100 @ 5%
• Toner Yield (Hi-Capacity), Color: Toner Yield (Hi-Capacity), Color  C/M/Y: Estimated 9,800 @ 5%
• Toner Yield (Ex-Hi-Capacity), Black: Toner Yield (Ex-Hi-Capacity), Black  Estimated 23,600 @ 5%
• Toner Yield (Ex-Hi-Capacity), Color: Toner Yield (Ex-Hi-Capacity), Color  C/M/Y: Estimated 16,500 @ 5%
• Imaging Unit Yield, Black: Imaging Unit Yield, Black  Estimated 109,000
• Imaging Unit Yield, Color: Imaging Unit Yield, Color  C/M/Y: Estimated 87,000
• Fuser Unit Yield: Fuser Unit Yield  Estimated 100,000 Pages
• Transfer Belt Unit Yield: Transfer Belt Unit Yield  Estimated 200,000 Pages
• Transfer Roller Yield: Transfer Roller Yield  Estimated 200,000 Pages
• Waste Toner Container Yield: Waste Toner Container Yield  Estimated 30,000
• Pages per Minute, Black: Pages per Minute, Black  25
• Pages per Minute, Color: Pages per Minute, Color  25
• Monthly Duty Cycle: Monthly Duty Cycle  107,000 Impressions
• Recommended Monthly Volume: Recommended Monthly Volume  6,250 Impressions
• First Page Print Time: First Page Print Time  9 sec color/6.9 sec black

Xerox VersaLink C7025 Paper Jams

Paper jams are usually associated with either paper feed issues or the fuser unit

• Paper feed issues, we carry in stock new Xerox VersaLink C7025 paper feed tires to replace worn tires. When tires are worn they can leave a grey smudge on the top sheet of paper in the paper tray, this is caused by the worn roller slipping on the paper. Paper feed issues are synonymous with the jam indicator coming on but no paper being found in the printer.
• Fuser jams - the fuser unit is similar to an old fashioned mangle, with its rollers being heated to 200’ centigrade. The heat roller is covered with a Teflon film to prevent toner sticking to it. When the fuser film wears the Teflon allows the Toner to stick to it, this will cause paper jams. Fuser unit jams can result in concertinaed paper being found in the machine.

If your Xerox VersaLink C7025 is jamming we carry in stock new paper feed tires and fuser units, we can attend site and rectify your jamming issues for you.

Call 01293 326406 or email sales@dos-crawley.co.uk to place a service call

Xerox VersaLink C7025 Print Quality Issues

Print quality issues can caused by several factors

• Poor quality consumables, toner cartridges can develop faults leading to print quality issues. Compatible cartridges give even more issues, make sure you purchase good quality consumables from a reputable source, we warrant our compatible cartridges for use in Xerox VersaLink C7025 printers.
• The Xerox VersaLink C7025 uses seperate drum units, these wear and will give issues with print quality.
• Contamination of the laser mirrors will lead to poor print quality, we can strip and clean your Xerox VersaLink C7025 printer optics.
• The Xerox VersaLink C7025 is prone to contamination of the Waste toner system on the Transfer Belt, as the name implies the Xerox VersaLink C7025 Transfer Belt combines black, cyan, magenta and yellow images on the belt to produce a full Color image. This is then transferred to the paper by the Secondary Transfer Roller, issues with the Transfer System will usually give smeared or banding issues. We can repair your Xerox VersaLink C7025 if it develops a Transfer Belt issue.

Xerox VersaLink C7025 Common fault codes

Fault Code 062-380:- Abnormality detected in Laser Unit, replacing the Laser Unit is a very big job, for customers experiencing this fault in the past, we have swapped the clients consumables into a refurbished Xerox VersaLink C7025 body, which proves quicker and cheaper than a lengthy repair to their own machine.

Fault Code 062-380:- Insufficient Lamp Brightness was Detected When Performing AGC - We have refurbished scanner, document feeder assemblies we can fit a refurbished unit to resolve this error.

We offer on-site local Xerox VersaLink C7025 printer print quality repairs in West Sussex, East Sussex, Surrey and Kent.

Xerox VersaLink C7025 Printer Offline - Network connection issues

Xerox VersaLink C7025 printer offline, unable to connect, our engineers can diagnose and resolve physical connection issues and driver related issues.Our engineers carry wireless print servers, network switches and a wide assortment of USB and Ethernet cables.

We can resolve multi-function printers to scan, scan to email or folder related issues.

Xerox VersaLink C7025 Installation

We offer on-site local Xerox VersaLink C7025 printer installation in West Sussex, East Sussex, Surrey and Kent. Even if you purchased your Xerox VersaLink C7025 elsewhere, we can assist in its installation. Our Xerox trained engineers can install your Xerox VersaLink C7025 for use with Apple and Microsoft operating systems.

Our engineers carry wireless print servers, network switches and a wide assortment of USB and Ethernet cables.

We can set up multi-function printers to scan, scan to email or folder.

We have mobile service engineers who can carryout on-site Xerox VersaLink C7025 printer repairs and servicing across West Sussex, East Sussex, Kent and Surrey call 01293 326406 or email sales@dos-crawley.co.uk to place a service call

Eddie can fix IT!

Call 01293 326406 or email sales@dos-crawley.co.uk to place a service call
