Eye-popping colour. Delectable detail. A perfect recipe for business success.
DESCRIPTION - XEROX PHASER 6600, WORKCENTRE 6605

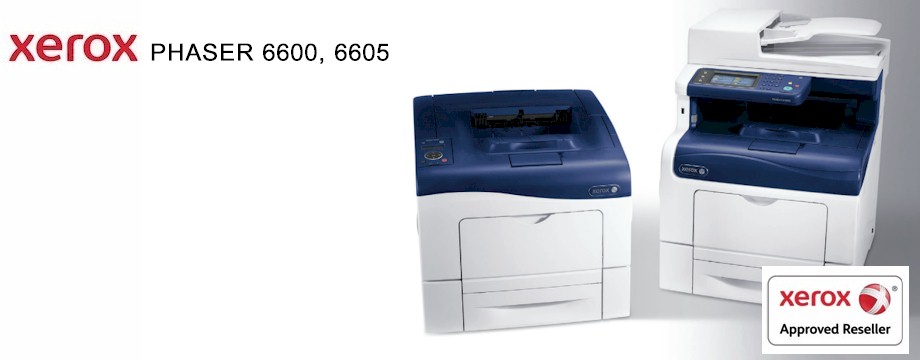

Phaser 6600 Colour Printer and WorkCentre 6605 Colour Multifunction Printer
The value of enhancing your company’s image is immeasurable. And with the value-packed Phaser 6600 Colour Printer and WorkCentre 6605 Colour Multi-function Printer, today’s busy work groups can easily make important business communications stand out from the competition with exceptional colour printing.
Colour That Gets Your Work Noticed
No matter what business you’re in, the Phaser 6600 and WorkCentre 6605 give your image an essential, colourful advantage.
- Prints that sell your business. A print resolution of up to 600 x 600 x 4 dpi (1200 x 1200 enhanced image quality) makes your printed communications stand out and grab attention.
- Enhanced output. Photo Mode makes your images and graphics look exceptional, producing deeper, richer colours for lifelike vibrancy.
- Unique Xerox EA Toner. Fuses at a much lower temperature, and reduces power consumption by up to 20% and CO2 emissions by up to 35%, compared to conventional toner. It’s also oil-free, delivering brilliant, glossy output, even on ordinary or recycled paper.
- Always the right colour. Pantone® Colour calibrated solid-colour simulations and Xerox colour correction technology ensure results that match your expectations.
- Consistent precision. True Adobe® PostScript® 3™ ensures your print jobs are consistently accurate, with the brightest, truest colours and superior graphics.
High-power Capabilities
The Phaser 6600 and WorkCentre 6605 deliver a host of capabilities and powerful options made affordable for small workgroups.
- Reduce your paper usage. Automatic two-sided printing on the DN confi gurations makes saving paper easy, and gives your documents a professional appearance. Plus, N-up printing lets you output multiple pages on one sheet, which is particularly useful when printing presentations.
- Wireless freedom. Place the Phaser 6600 and WorkCentre 6605 anywhere in the offi ce with optional Wi-Fi.
- Less to replace. High-capacity toner cartridges allow longer periods of uninterrupted productivity, and help you reduce your total cost of operation over time.
- Consolidate and save. The value packed WorkCentre 6605 saves energy and supplies costs by combining the functions of a copier, printer, scanner and fax – all in one device.
- Stay secure. Keep your sensitive documents away from unintended recipients with available secure print*, and protect access to device features with front-panel PIN code authentication.
- Total peace of mind. Reliability is backed by our standard one-year on-site warranty.
Productivity Simplified
The Phaser 6600 and WorkCentre 6605 support fast-paced workteams with time-saving productivity advantages and features designed for total simplicity.
- Print and go. The Phaser 6600 and WorkCentre 6605 work quickly, with colour and black and white print speeds of up to 35 ppm.
- Load paper less often. The main 550 sheet paper tray holds a full ream of paper – no more half-empty packages taking up valuable storage space. An optional 2nd tray increases total capacity up to 1,250 sheets for even longer periods of uninterrupted productivity.
- Simple as can be. The innovative and tilting 4.3-inch touch screen on the WorkCentre 6605 features bright, colourful icons and intuitive navigation for optimal ease-of-use.
- Digitise your workfl ows. Use the WorkCentre 6605 to scan your hard copy documents and get text-searchable digital fi les that can be automatically shared via email or network folder, or saved on the device or any USB memory device for true portability.
- Easy startup and everyday operation. You’ll be up and running in minutes, and with Xerox® CentreWare® IS, remote device administration is handled with ease right from any networked computer’s browser.
One device, multiple functions
The WorkCentre 6605 Colour Multifunction Printer builds on the outstanding print performance offered by the Phaser 6600, delivering a host of powerful productivity tools designed to make your daily office tasks more efficient than ever
ACCESSORIES - XEROX PHASER 6600, WORKCENTRE 6605
- The WorkCentre 6605 includes a 4.3-inch touch screen with easily understood instructions and Help Screens to streamline walkup operations.
- A 50-sheet Duplex Automatic Document Feeder scans two-sided originals for copy, scan and fax jobs.
- A front-side USB port allows users to quickly print from or scan to any standard USB memory device.
- Powerful electronic workflow's include scan to email and network scanning, plus LAN Fax for fast, efficient network faxing from your PC or Mac.
- 250-sheet output tray with tray-full sensor.
- 150-sheet Multipurpose Tray handles media sizes from 76.2 x 127 mm to 216 x 356 mm.
- With the 550-sheet paper tray, standard paper capacity for the WorkCentre 6605 totals 700 sheets.
- Optional 550-sheet paper tray increase total paper capacity to 1,250 sheets.
OPTIONS - XEROX PHASER 6600, WORKCENTRE 6605
097S04400 - XEROX PHASER 6600, WORKCENTRE 6605 550-Sheet Tray
097S04269 - XEROX PHASER 6600, WORKCENTRE 6605 512 MB memory
097S04403 - XEROX PHASER 6600, WORKCENTRE 6605 Productivity Kit (160 GB HD)
097S04409 - XEROX PHASER 6600, WORKCENTRE 6605 Wireless Networking Adaptor
SPECIFICATIONS - XEROX PHASER 6600, WORKCENTRE 6605
|
Phaser 6600N | Phaser 6600DN | WorkCentre 6605N | WorkCentre 6605DN |
Speed | Up to 35 ppm A4, colour and black and white |
PAPER HANDLING |
|
|
|
|
Standard | N/A | Duplex Automatic Document Feeder (DADF): 50 sheets:
Custom sizes: 140 x 140 mm to 216 x 356 mm |
|
Multipurpose Tray: 150 sheets; Custom sizes: 76.2 x 127 mm to 216 x 356 mmTray 1: 550 sheets; Custom sizes: 148 x 210 mm to 216 x 356 mm |
Option
|
Tray 2: 550 sheets; Custom sizes: 148 x 210 mm to 216 x 356 mm |
Automatic two-sided output | N/A | Standard | N/A | Standard |
Print First-page-out-time | As fast as 9 seconds black and white / 10 seconds colour |
Print Resolution (max) | Up to 600 x 600 x 4 dpi (1200 x 1200 enhanced image quality) |
Processor | 533 MHz |
|
|
|
Memory (std / max) | 256 MB / 768 MB |
| 512 MB / 1 GB |
|
Connectivity | USB 2.0, 10/100/1000Base-TX Ethernet, optional Wi-Fi (802.11 n/g/b) |
Page description languages | True Adobe® PostScript® 3™, PCL5/6, XPS, PDF Emulation |
Print features | PANTONE® Colour calibrated solid-colour simulations, Saved settings, Earth Smart settings, Colour Corrections, N-up, Booklet layout, Watermark, Photo mode, Collation, Secure Print2 , Saved Print2 , Font/Form/Macro Storage3 |
COPY |
|
|
|
|
First-page-out-time | NA | As fast as 13 seconds black and white / 16 seconds colour |
Copy features | NA | Up to 600 x 600 dpi, Reduce/Enlarge (25%-400%), Lighter/Darker, Colour Saturation, Sharpness, Colour Balance, Auto Exposure, Up to 99 copies, 2-up Output, AutoFit, Cloning, Collate (up to 50 pages) |
Fax4 Walk-Up Fax features | NA | MH/MR/MMR/JBIG Compression, Reject Junk Fax, Distinctive Ring Pattern, Detection, Fax Forwarding and Local Print, Polling Receive, Delayed Start (up to 24 hours), Broadcast Sending (up to 200 destinations), Fax Address Book (up to 200 speed dial), Secure Fax Receive |
LAN Fax Features | NA | Delayed Start (up to 24 hours), Broadcast Sending (up to 30 destinations), Zoom, Auto Fit, Rotation, N-up, Watermark, Phonebook (Up to 500 speed dial numbers, Up to 500 group dial, Phonebook stored on PC) |
Scan Scan destinations | NA | TWAIN/WIA scanning via USB or Network, Scan to Computer via SMB, Scan to Server via FTP, Scan to Email with LDAP support, Scan to USB Memory Device, WSD Scanning |
Scan features | NA | JPEG/TIFF/Multipage TIFF/PDF File Formats, Email Address Book (up to 100 Email addresses, up to 10 Email group addresses), Express Scan Manager, Scan to PC Desktop® SE Small Business Edition (1-seat license) |
Security | Secure Fax Receive (WorkCentre 6605 only), Secure Print2 , 256-bit disk encryption and overwrite3 , Secure HTTPS (SSL, Secure LDAP3 ), IPsec, 802.1X Authentication, IPv6, SNMPv3, Audit Log, IP Filtering |
Warranty | Six months on-site |
Device Management | CentreWare® Internet Services, CentreWare Web, Email alerts, Apple® Bonjour |
Print Drivers | Windows® XP and later, OS® X 10.5 and later, various Linux® and nix distributions, Xerox® Global Print Driver®, Xerox® Mobile Express Driver® |
Media Handling
| Duplex Automatic Document Feeder (6605): Simplex: 50 – 125 gsm; Duplex: 60 – 125 gsm; Bypass Tray, Tray 1, Tray 2: 60 – 216 gsm; Media types: Plain, hole punched, letterhead, coloured, lightweight card stock, lightweight glossy card stock, heavyweight card stock, heavyweight glossy card stock, labels, Envelopes |
Operating Environment | Temperature: Storage: 0º to 40º C; Operating: 10º to 32º C;
Humidity: Operating: 10% to 85%; Sound power levels: 6600:
Printing: 6.9 B, Standby: 4.5 B; 6605: Printing/copying: 6.8 B,
Standby: 4.4 B; Sound pressure levels: 6600: Printing: 53 dB(A),
Standby: 29 dB(A); 6605: Printing/copying: 52 dB(A),
Standby: 29 dB(A); Warm-up time (from sleep mode) 6600: as fast as 21 seconds, 6605: as fast as 25 seconds |
Electrical
|
Power: 220-240 VAC, 50/60 Hz, 5A; Power consumption: 6600: Standby: 64 W, Printing: 520 W, Sleep: 4 W; 6605: Standby: 72 W, Printing: 560 W, Sleep: 5.9 W; Energy Star qualifi ed (DN Confi guration) |
|
|
|
|
|
|
|
|
|
|
SUPPLIES - XEROX PHASER 6600, WORKCENTRE 6605
|
|
Standard-Capacity Toner Cartridge -
|
106R02248
|
Xerox Phaser 6600, WorkCentre 6605 Black Toner: 3,000 pages at 5% resolution
|
106R02245
|
Xerox Phaser 6600, WorkCentre 6605 Cyan Toner: 2,000 pages at 5% resolution
|
106R02246
|
Xerox Phaser 6600, WorkCentre 6605 Magenta Toner: 2,000 pages at 5% resolution
|
106R02247
|
Xerox Phaser 6600, WorkCentre 6605 Yellow Toner: 2,000 pages at 5% resolution
|
|
High-Capacity Toner Cartridge*:-
|
106R02232
|
Xerox Phaser 6600, WorkCentre 6605 Black Toner: 8,000 pages at 5% resolution
|
106R02229
|
Xerox Phaser 6600, WorkCentre 6605 Cyan Toner: 6,000 pages at 5% resolution
|
106R02230
|
Xerox Phaser 6600, WorkCentre 6605 Magenta Toner: 6,000 pages at 5% resolution
|
106R02231
|
Xerox Phaser 6600, WorkCentre 6605 Yellow Toner: 6,000 pages at 5% resolution
|
|
Routine Maintenance Items
|
108R01121
|
Xerox Phaser 6600, WorkCentre 6605 Imaging Unit Kit (Drum Unit) : Up to 60,000 pages
|
108R01124
|
Xerox Phaser 6600, WorkCentre 6605 Waste Cartridge : Up to 30,000 pages
|
